User home directory storage#

All users on all the hubs get a home directory with persistent storage.

This is made available through cloud-specific filestores.

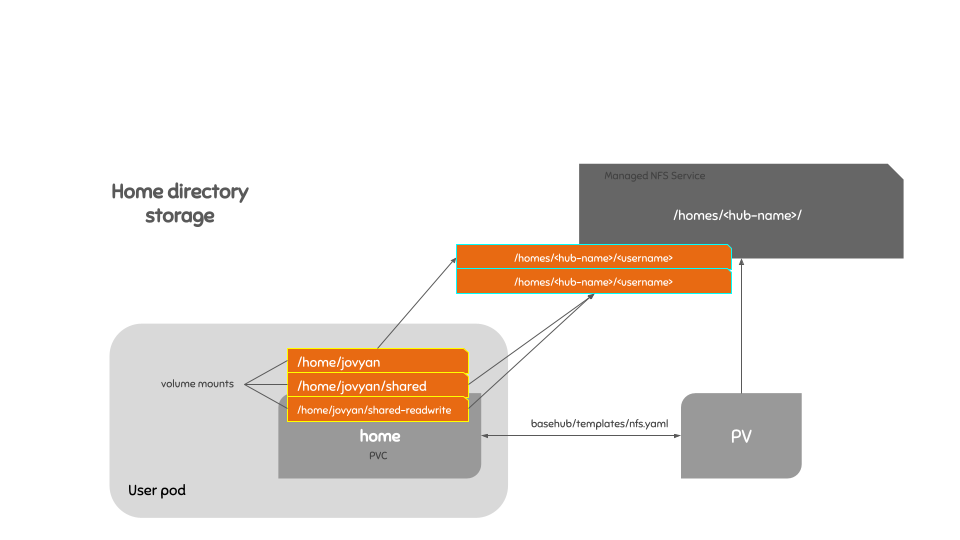

../../../_images/infrastructure-storage-layer.png

Managed NFS Server setup#

Terraform is setup to provision managed NFS server using the following cloud specific implementations.

  • GCP: Google Filestore

  • Azure: Files

  • AWS: Elastic File System

NFS Client setup#

For each hub, there needs to be the components described by the following subsections.

Hub directory#

A directory is created under the path defined by the nfs.pv.baseShareName cluster config. Usually, this is /homes - for hubs that use the managed NFS provider for the cloud platform.

Created using the infrastructure described in the terraform section.

This the the base directory under which each hub has a directory (nfs.pv.baseShareName). This is done through a job that’s created for each deployment via helm hooks that will mount nfs.pv.baseShareName, and make sure the directory for the hub is present on the NFS server with appropriate permissions.

Note

The NFS share creator job will be created pre-deploy, run, and cleaned up before deployment proceeds. Ideally, this would only happen once per hub setup - but we don’t have a clear way to do that yet.

Hub user mount#

For each hub, a PersistentVolumeClaim(PVC) and a PersistentVolume(PV) are created. This is the Kubernetes Volume that refers to the actual storage on the NFS server. The volume points to the hub directory created for the hub and user at <hub-directory-path>/<hub-name>/<username> (this name is dynamically determined as a combination of nfs.pv.baseShareName and the current release name). Z2jh then mounts the PVC on each user pod as a volume named home.

Parts of the home volume are mounted in different places for the users, as detailed below.

User home directories#

Z2jh will mount into /home/jovyan (the mount path) the contents of the path <hub-directory-path>/<hub-name>/<username> on the NFS storage server. Note that <username> is specified as a subPath - the subdirectory in the volume to mount at that given location.

Shared directories#

Shared directories use the same storage as users’ home directories, and are not size limited in any other way. If more space is required, resize the home directory storage up.

/home/jovyan/shared#

Mounted for all users, showing the contents of <hub-directory-path>/<hub-name>/_shared. This mount is readOnly and users can’t write to it.

/home/jovyan/shared-readwrite#

Mounted just for admins, showing the contents of <hub-directory-path>/<hub-name>/_shared. This volumeMount is NOT readOnly, so admins can write to it.

Note

This feature comes from the custom KubeSpawner that the our community hubs use, that allows providing extra configuration for admin users only.

(Optional) The allusers directory#

Can be mounted just for admins, showing the contents of <hub-directory-path>/<hub-name>/. This volumeMount can be made readOnly if the following volume property is set: readOnly: true. If it is not specified, then by default, it is NOT readOnly, so admins can write to it. It’s purpose is to give access to the hub admins to all the users home directory to read and/or modify. This is helpful if they want to rename users (after a user name change, for example), download all the users’ data, or delete some users’ home directories to conserve disk space.

jupyterhub:
  custom:
    singleuserAdmin:
      extraVolumeMounts:
        - name: home
          mountPath: /home/jovyan/allusers
          # Uncomment the line below to make the directory readonly for admins
          # readOnly: true
        - name: home
          mountPath: /home/rstudio/allusers
          # Uncomment the line below to make the directory readonly for admins
          # readOnly: true
        # mounts below are copied from basehub's values that we override by
        # specifying extraVolumeMounts (lists get overridden when helm values
        # are combined)
        - name: home
          mountPath: /home/jovyan/shared-readwrite
          subPath: _shared
        - name: home
          mountPath: /home/rstudio/shared-readwrite
          subPath: _shared

A shared-public directory#

Mounted for all users in a read/write fashion, for a rough sharing solution. This is put in a different backing directory than what is used for the regular shared directory.

Warning

All users can see all other users’ contents, modify and delete them! Use this with a lot of caution.

A shared-public directory needs to be mounted on all home directories, and we need to modify our initContainer to make sure this is owned by the appropriate user.

jupyterhub:
  singleuser:
    storage:
      extraVolumeMounts:
        - name: home
          mountPath: /home/jovyan/shared-public
          subPath: _shared-public
          readOnly: false
        - name: home
          mountPath: /home/rstudio/shared-public
          subPath: _shared-public
          readOnly: false
        - name: home
          mountPath: /home/jovyan/shared
          subPath: _shared
          readOnly: true
    initContainers:
      - name: volume-mount-ownership-fix
        image: busybox:1.36.1
        command:
          - sh
          - -c
          - id && chown 1000:1000 /home/jovyan /home/jovyan/shared /home/jovyan/shared-public && ls -lhd /home/jovyan
        securityContext:
          runAsUser: 0
        volumeMounts:
          - name: home
            mountPath: /home/jovyan
            subPath: "{username}"
          # Mounted without readonly attribute here,
          # so we can chown it appropriately
          - name: home
            mountPath: /home/jovyan/shared
            subPath: _shared
          - name: home
            mountPath: /home/jovyan/shared-public
            subPath: _shared-public
